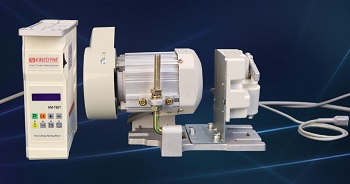

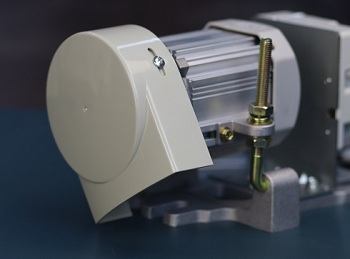

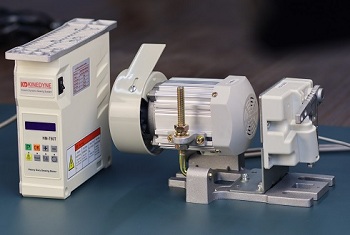

Kinedyne HM-750T is a powerful, quiet and reliable energy saving servo motor perfect for all types of heavy-duty industrial sewing machines. The HM-750T is specifically designed for large barrel shuttle hook type extra heavy-duty sewing machines, and is the first motor made specifically for these types of machines.


The major advantages:


1. Extra powerful servo motor for heavy duty industrial sewing machine
This premium quality energy saving servo motor offers an awesome 750 Watts output power. That is approximately 1 horsepower (HP) of performance and power! It can drive any extra heavy duty industrial sewing machine without any difficulty.


2. High torque clutchless electronic AC servo motor
The HM-750T electronic servo motor produces an awesome 7.9 Nm of torque which means extremely strong needle penetration force and better performance in super hard leather and technical textiles.


3. Super quiet energy saving brushless servo motor
Absolutely silent with no vibration noise or buzzing like other models on the market. The constant noise that is normally associated with sewing motors (clutch motors) is almost entirely eliminated, creating a more pleasant work environment.


4. Speed adjustable sewing machine motor
Speed is adjustable by a simple setting (from 300RPM to 3000RPM) that allowing you to slow down your machine and sew stitch by stitch. This makes sewing detailed work much easier. Also ideal for beginners.


5. Energy saving servo motor

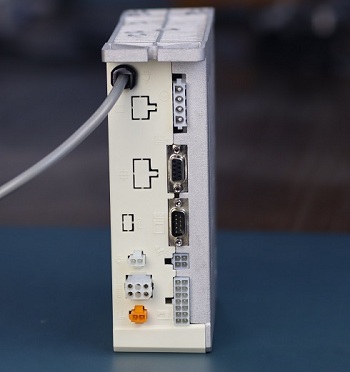

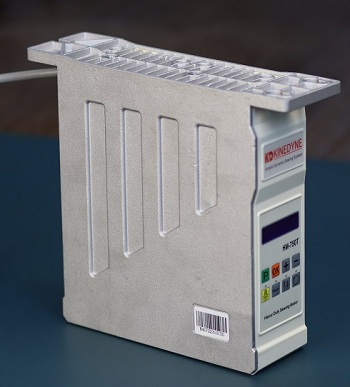

What sets the Kinedyne HM-750T apart from other motors is a completely redesigned PC board which allows for true low current start up. There are two advantages to this. First, it allows for a more stable amperage draw, and reduces the energy consumption by an astonishing 60%-80%.


6. High efficiency sewing machine servo motor with best price
It is a high efficiency sewing machine servo motor that supports electric over pneumatic air system for automatic functions such as pneumatic presser foot lift, pneumatic reverse stitch, automatic thread trimmer, needle cooler and puller lift, your productivity may increase substantially (20-40%).


7. Stable & Accurate Speed Control
The heavy-duty industrial sewing machine servo motor adopts a sinusoidal wave current drive. The sinusoidal wave current drive method provides unparalleled power and torque, thus the motor runs gently and smoothly when motor shifts between low, middle and high speed. This provides very accurate speed control!


8. Kinetic dynamic sewing system
Different machines and / or materials require different torque, power and speed. It is similar to gears for a car. The sewing motor can be adapted for slow powerful use that requires a lot of torque and horsepower, or used in faster sewing situations that require less torque and more speed.


9. Compact and easy to install servo sewing machine motor

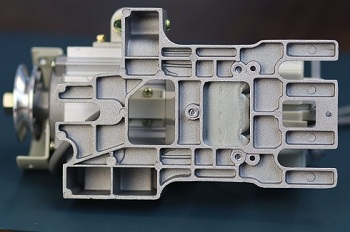

The mounting system is the common universal 3-hole design used in all clutch and servo motors. Installation is easy and hassle free, with no need for a technician or electrician.


10. Needle positioning servo motor great for time-saving

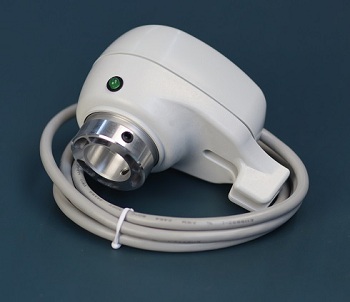

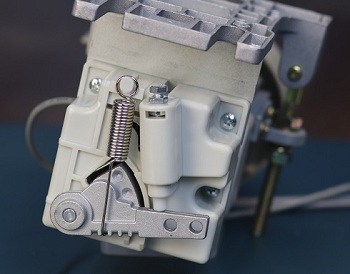

Kinedyne needle positioner synchronizer allow you to stop needle in the down AND up position. When you want to pivot the work to change sewing direction, the needle stops in down position for handy fabric movement (will not lose the stitch), sew corners or pivot with ease. At end of sewing, stops needle in up position so that the work can be removed, and thread snipped.

Applications:

This durable, robust and extra strong energy saving servo motor perfect for all types of heavy duty long arm and extra heavy duty industrial sewing machines, such as Seiko SLH-2B, Juki TSC-441, Juki TNU-243, Durkopp Adler 204-370, Durkopp Adler 205-370, Seiko CH-2B, CH-6B,CH -7B,CH -8B,TH-6B, -TH8B, Durkopp Adler 969, Durkopp Adler 967,Juki LG-158,Seiko JW-28BL-30, Durkopp Adler 221
